* Exchangeable Heads
* Aluminum or Steel
5-C OVERSIZE COLLETS
EXCHANGEABLE HEADS - Aluminum or Steel
STANDARD EXTRA THICK
DIAMETER HEAD THICKNESS HEAD THICKNESS
1 1/2".....................................................................................................7/8"
2"........................................3/4".............................................................1- 1/4"
2 1/2"...................................1"...............................................................1 -1/2"
3".........................................1"...............................................................1 - 5/8"
3 1/2" ..................................1"................................................................
4".........................................1"................................................................1 - 5/8"
41/2".......................................................................................................1 - 5/8" **ALUMINUM ONLY
SPECIAL THREAD
5-C OVERSIZE COLLETS

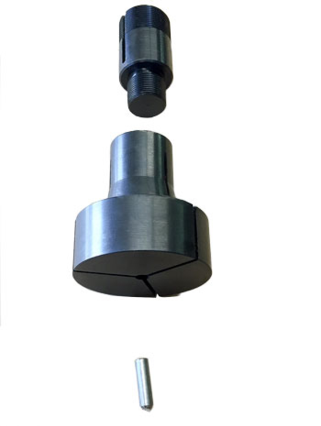

PICTURED: 5C OVERSIZE COLLET
PICUTRED: PINS
1/8" PINS FURNISHED WITH 1 1/2" HEADS
1/4" PINS FURNISHED WITH ALL OTHER HEADS
PICTURED: A-5 ADAPTER
JUST INSERT PIN DRAWN IN COLLET BORE OR MILL TO SIZE.
7/8- 20 FINE THREAD
Type your paragraph here.
Use diameter size for the part number.
Add (A) for aluminum
(S) for steel
(X) for extra thick
Use aluminum or steel on long or short runs.
For handwheel type collet closers and when milling heads with end mills.
Aluminum type collet heads are generally preferred.
Adapter broached for 3/8" allen wrench, large end so heads may be removed easier.
